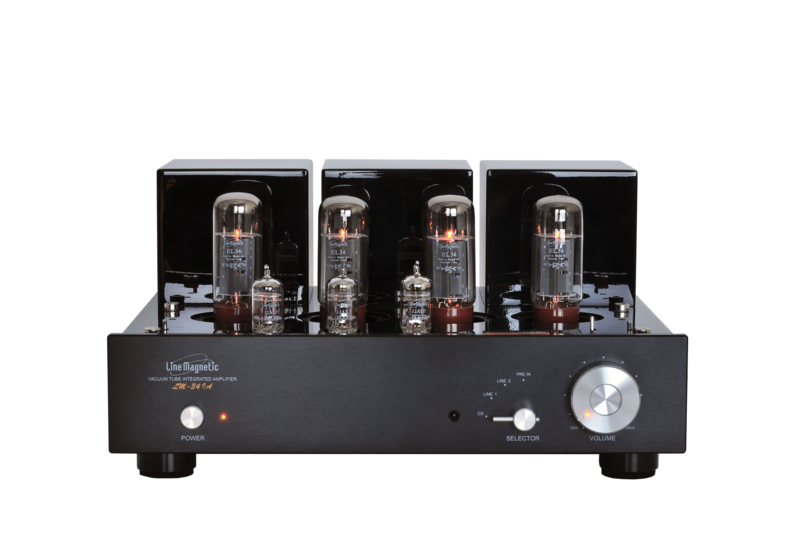

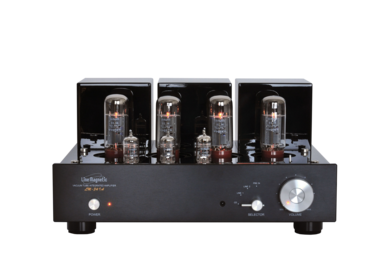

LM-34IA INTEGRATED TUBE AMPLIFIER - PUSH PULL EL34 - CLASS AB - 2X40W
Forty watts per channel, Class AB Integrated Stereo Amplifier with EL34 output power tubes, 12AX7 and 12AU7 input tubes.
Standard with EL34 output tubes. Want to enjoy some other types of power tubes? That is why we have tube selector here.
Different from other inputs Pre-In offers you a possibility to connect to some other Preamplifier so that you can the LM-34IA as a power amplifier.
Specially designed EI transformers for power supply and two EI output transformers with wide bandwidth are applied. Hand made construction with the finest point-to-point wiring and special audiphiles components has carefull been selected by our designers.
User bias control has been used for bias adjustment and one meter has been added to the top plate to allow you to monitor bias with ease.
HIGHLIGHTS
- Class AB amplifier
- Point-to-point wiring
- High quality components
- TUBES
- Input stage: 1x 12AX7 - 2x 12AU7
- Power stage: 4x EL34
MAIN FEATURES
- Bias control is accessible on top of the amplifier panel with true ampere meter.
- SoftStart and time-delay circuit. (30 seconds)
- Specially designed EI transformer for power supply
- Two EI output transformers with wide bandwidth are applied
- ALPS volume control and Realcap capacitors are applied.
- Metal and removable tube guard cage
- Infrared Remote control
- Class AB amplifier - 2x40W RMS
- THD: 1% (1kHz)
- Signal/Noise ratio: 88dB (Weighted A)
- Frequency response (-1.5dB): 10 - 50.000 Hz
- Sensitivity: 200 mV (Mode intégré)
- Input Impedance: 100kΩ
- Load impedance for HP to connect: 4/8Ω

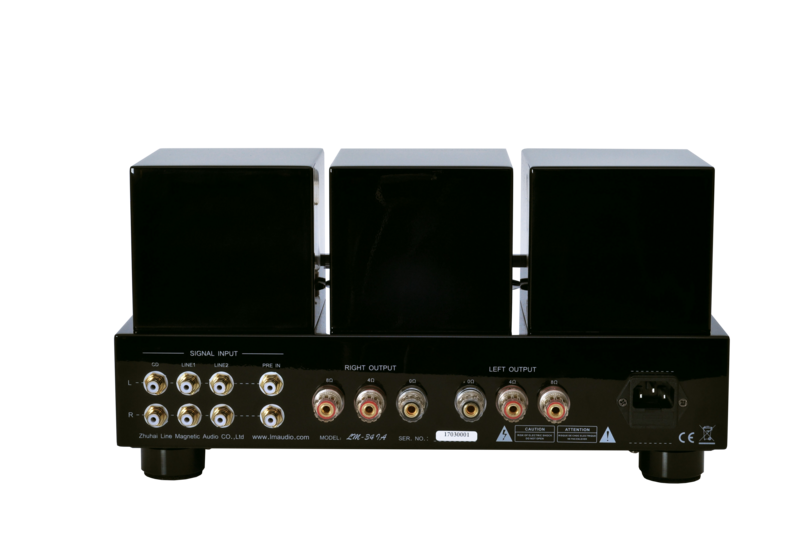

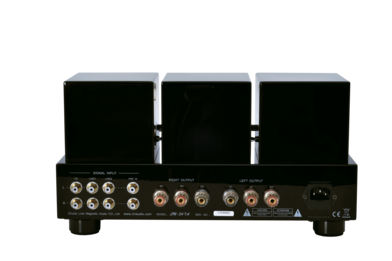

Connectors
3x Line inputs RCA (pair)
1x Pré-in input
2x Screw terminals compatible with banana plugs
Included Accessories
2x Fuses
1x Remote control
1x Detachable power cord
1x Manual
Tubes Basics | Common Replacements
12AX7 | 12AX7EH, ECC83, E83CC, CV4004, ECC803, 5751
12AU7 | ECC82, 12AU7EH, 5814, 6189, CV4003
EL34 | 6CA7
Dimensions (L x H x P): 377 x 190 x 345 mm
Weight: 20 Kg
Black
